Male Elbow

TKL NO.
TKL18219SA, TKL18220SA, TKL18221SA, TKL18223SA, TKL18224SA, TKL18225SA, TKL18226SA, TKL18227SA, TKL18228SA, TKL18229SA, TKL18230SA, TKL18231SA, TKL18232SA, TKL18233SA, TKL18234SA, TKL18235SA, TKL18248SA, TKL18247SA, TKL18236SA, TKL18237SA, TKL18238SA, TKL18239SA, TKL18240SA, TKL18241SA, TKL18242SA, TKL18243SA, TKL18245SA, TKL18246SA
OE NO.
169C-2-1 69x2x1 18219 G55104-0201, 169C-2-2 69x2 18220 G55104-0202, 169C-3-2 69x3 18221 G55104-0302, 169C-3-4 69x4 18223 G55104-0402, 169C-4-2 69x4x4 18224 G55104-0402, 169C-4-4 69x4x4 18225 G55104-0404, 169C-4-6 18226 G55104-0406, 18227, 169C-5-2 69x5 18228 G55104-0502, 169C-5-4 69x5x4 18229 G55104-0504, 169C-5-6 18230, 18231, 169C-6-2 69x6x2 18232 G55104-0602, 169C-6-4 69x6 18233 G55104-0604, 169C-6-6 69x6x6 18234 G55104-0606, 169C-6-8 69x6x8 18235 G55104-0608, 69x7 18248 G55104-0704, 18247 G55104-0704, 169C-8-4 69x8x4 18236 G55104-0804, 169C-8-6 69x8 18237 G55104-0806, 169C-8-8 69x8x8 18238 G55104-0808, 18239, 18240, 169C-10-8 69x10 18241 G55104-1008, 18242 , 169C-12-8 69x12 18243 G55104-1208, 169C-12-12 69x12x12 18245 G55104-1212, 18246

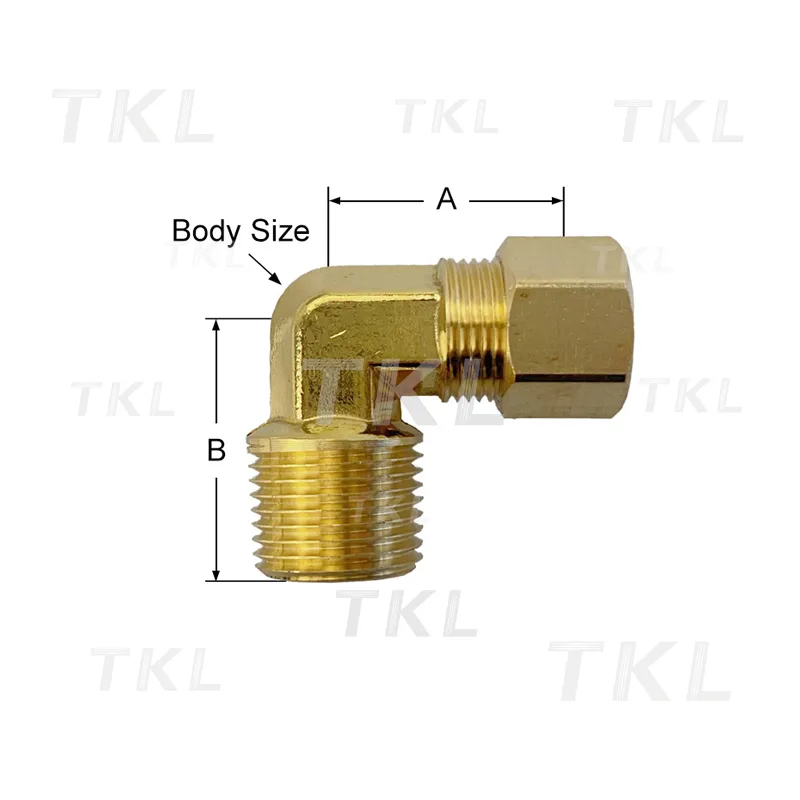

Specification of TKL18219SA Male Elbow

TKL NO.	OE NO.						DESCRIPTION
TKL NO.	PARKER	EATON	ALKON	MAF	GATES	DIXOH	Comp* male NPTF	A	B	Body Size
TKL18219SA	169C-2-1	69x2x1		18219	G55104-0201		1/8*1/16	0.59	0.73	0.34
TKL18220SA	169C-2-2	69x2		18220	G55104-0202		1/8*1/8	0.60	0.67	0.34
TKL18221SA	169C-3-2	69x3		18221	G55104-0302		3/16*1/8	0.66	0.69	0.31
TKL18223SA	169C-3-4	69x4		18223	G55104-0402		3/16*1/4	0.66	0.83	0.31
TKL18224SA	169C-4-2	69x4x4		18224	G55104-0402		1/4*1/8	0.62	0.74	0.38
TKL18225SA	169C-4-4	69x4x4		18225	G55104-0404		1/4*1/4	0.62	0.88	0.38
TKL18226SA	169C-4-6			18226	G55104-0406		1/4*3/8	0.79	0.93	0.38
TKL18227SA				18227			1/4*1/2	0.79	0.96	0.38
TKL18228SA	169C-5-2	69x5		18228	G55104-0502		5/16*1/8	0.76	0.75	0.38
TKL18229SA	169C-5-4	69x5x4		18229	G55104-0504		5/16*1/4	0.76	0.85	0.38
TKL18230SA	169C-5-6			18230			5/16*3/8	0.75	0.93	0.38
TKL18231SA				18231			5/16*1/2	0.84	1.12	0.56
TKL18232SA	169C-6-2	69x6x2		18232	G55104-0602		3/8*1/8	0.83	0.87	0.49
TKL18233SA	169C-6-4	69x6		18233	G55104-0604		3/8*1/4	0.77	0.82	0.46
TKL18234SA	169C-6-6	69x6x6		18234	G55104-0606		3/8*3/8	0.81	0.94	0.46
TKL18235SA	169C-6-8	69x6x8		18235	G55104-0608		3/8*1/2	0.9	1.06	0.56
TKL18248SA		69x7		18248	G55104-0704		3/8*3/4	1.03	1.19	0.81
TKL18247SA				18247	G55104-0704		7/16*1/4	0.84	1.00	0.56
TKL18236SA	169C-8-4	69x8x4		18236	G55104-0804		1/2*1/4	0.95	0.97	0.59
TKL18237SA	169C-8-6	69x8		18237	G55104-0806		1/2*3/8	0.95	1.03	0.59
TKL18238SA	169C-8-8	69x8x8		18238	G55104-0808		1/2*1/2	0.95	1.13	0.59
TKL18239SA				18239			1/2*3/4	1.12	1.30	0.54
TKL18240SA				18240			5/8*3/8	1.06	1.11	0.63
TKL18241SA	169C-10-8	69x10		18241	G55104-1008		5/8*1/2	1.06	1.16	0.63
TKL18242SA				18242			5/8*3/4	1.06	1.36	0.63
TKL18243SA	169C-12-8	69x12		18243	G55104-1208		3/4*1/2	1.17	1.31	0.75
TKL18245SA	169C-12-12	69x12x12		18245	G55104-1212		3/4*3/4	1.17	1.38	0.75
TKL18246SA				18246			7/8*3/4	1.25	1.38	0.94
