TKL56117350 Silicone Elbow Hose

TKL56117350 Silicone Elbow Hose

TKL56117350 Silicone Elbow Hose

TKL56117350 Silicone Elbow Hose

TKL56117350 Silicone Elbow Hose





Silicone Elbow Hose

TKL NO.
TKL56117350, TKL56117400, TKL56121901, TKL56117250, TKL56120002, TKL56118350, TKL56175250, TKL56118100, TKL56147791, TKL56155726, TKL56120250, TKL56120251, TKL56146130, TKL56146096
OE NO.
561-17350, 561-17400, 561-21901, 561-17250, 561-20002, 561-18350, 561-75250, 561-18100, 561-47791, 561-55726, 561-20250, 561-20251, 561-46130, 561-46096

Inquire > Add to Cart >

Specification of TKL56117350 Silicone Elbow Hose

TKL NO.	OE NO.	DESCRIPTION
TKL NO.	OE NO.	Angle	Size/mm	Size/inch	color	layer/polyester	thickness

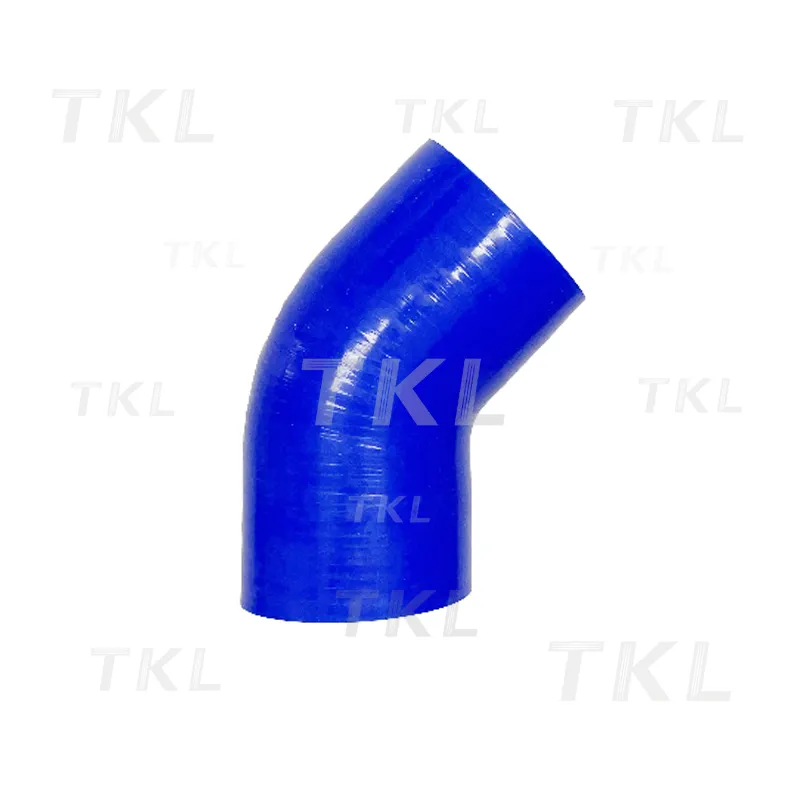

TKL56117350	561-17350	45"	ID 89mm, L152mm	length 6" ID 3 1/2"	BLUE	4	5mm
TKL56117400	561-17400		ID 102mm, L152mm	ID 4" length 6"	BLUE	4	5mm
TKL56121901	561-21901		ID 60mm, L 57mm×57mm	ID 2.375" L 2.250"×2.250" smooth	BLUE	4	5mm
TKL56117250	561-17250		ID 63mm, L152mm	length 6" ID 2 1/2" smooth	BLUE	4	5mm
TKL56120002	561-20002		ID 102mm	as picture ID 4"	BLUE	4	5mm

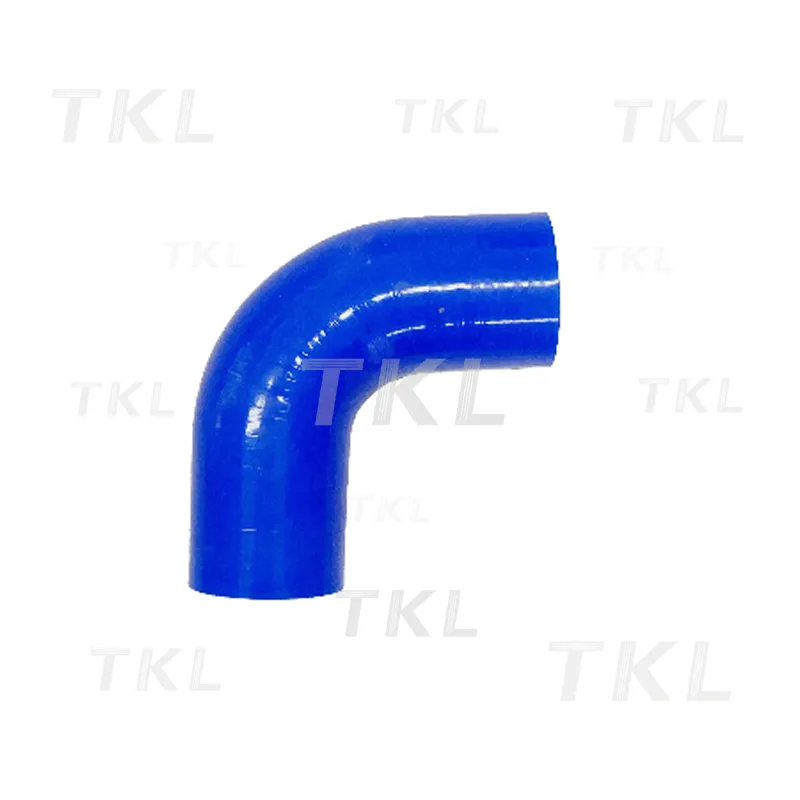

TKL56118350	561-18350	90"	ID89mm,L 152mm	length 6" ID 3 1/2"	BLUE	4	5mm
TKL56175250	561-75250		ID 63.5mm, L 114mm	ID 2.5" / L 4.5"	BLUE	4	5mm
TKL56118100	561-18100		ID25.4mm, L172mm	length 6.75" ID 1" smooth	BLUE	4	5mm
TKL56147791	561-47791		ID 127-152 mm,L 121mm	length 4.75" ID5"- 6" smooth	BLUE	4	5mm
TKL56155726	561-55726		ID76mm,L 365mm	length 14.375" ID 3" smooth	BLUE	4	5mm
TKL56120250	561-20250	35"	ID 63.5mm, L 117mm	ID 2.5" L 4,625"	BLUE	4	5mm
TKL56120251	561-20251	23"	ID 63.5mm, L127mm	ID 2.5" L 5"	BLUE	4	5mm
TKL56146130	561-46130	-	ID 102mm, L 444.5mm	17.50" × 4.00" × 4.00" smooth	BLACK	4	5mm
TKL56146096	561-46096	-	ID 102mm, L 374.6mm	ID 4" Length 14.750" smooth	BLACK	4	5mm
