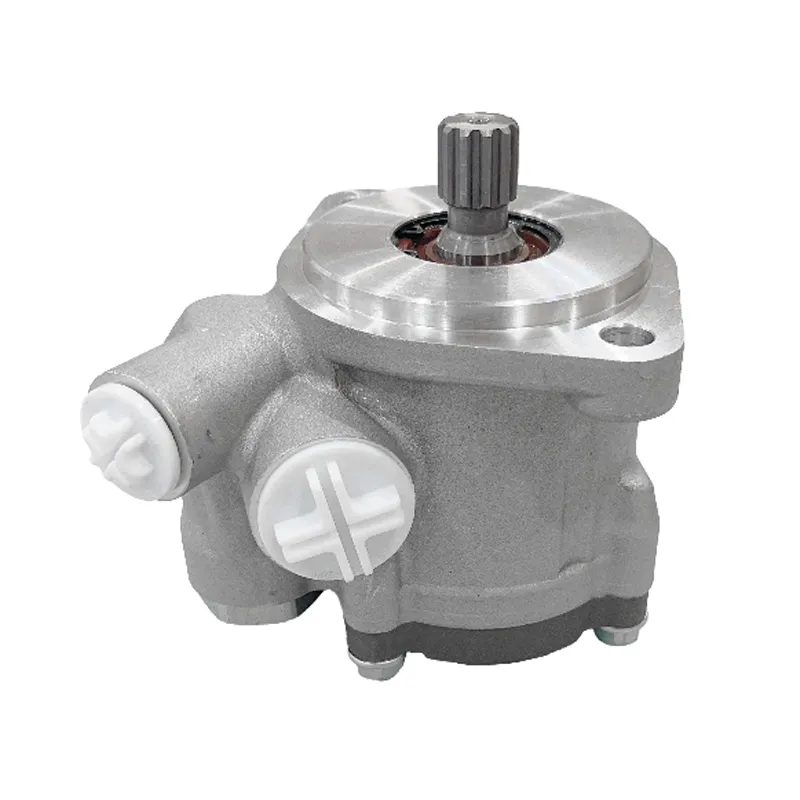

Auto Power Steering Pump

TKL NO.
TKLEV221618L101, TKLPEV251615R101, TKLEV181615R101, TKLEV222418R101, TKLPEV221615L101, TKLPEV221618R101
OE NO.
EV221618L101, PEV251615R101 J69-1056-251615R01, EV181615R101, EV222418R101, PEV221615L101, PEV221618R101

Specification of TKLEV221618L101 Auto Power Steering Pump

TKL NO.	OE NO.	DESCRIPTION
TKL NO.	OE NO.	APPLICATION	APPLICATION	Of Rotation	Nominal Displacement	Highest Rotational Speed	Controlled Flow Rate	Fuel Feed Hole	Fuel Discharge Hole
TKLEV221618L101	EV221618L101	AMERICAN TRUCK	185 bar	LEFT	22.0ml/r	500-3600r/min	16.0L/min	11/16-12UN	3/4-16UNF
TKLPEV251615R101	PEV251615R10 1J69-1056-251615R01	J69-1056-251615R01	150 bar	RIGHT	25.0ml/r	500-3600r/min	16.0L/min	11/16-12UN	3/4-16UNF
TKLEV181615R101	EV181615R101	J69-1056-181615R01	150 bar	RIGHT	18.0ml/r	500-3600r/min	16.0L/min	11/16-12UN	3/4-16UNF
TKLEV222418R101	EV222418R101	AMERICAN TRUCK	180 bar	RIGHT	23.0ml/r	500-3600r/min	24.0L/min	11/16-12UN	3/4-16UNF
TKLPEV221615L101	PEV221615L101	FREIGHTLINER - KENWORTH - COLUMBIA	145 bar	LEFT	22.0ml/r	500-3600r/min	16.0L/min	11/16-12UN	3/4-16UNF
TKLPEV221618R101	PEV221618R101	ISX - RHJ69-1056-221618R01	185 bar	RIGHT	22.0ml/r	500-3600r/min	16.0L/min	11/16-12UN	3/4-16UNF
TKLEV181618R101	EV181618R101	PETERBILT-KENWORTH	180 bar	RIGHT	18.0ml/r	500-3600r/min	16.0L/min	11/16-12UN	3/4-16UNF
TKLEV181618L101	EV181618L101	KENWORTH, PETERBILT, MACK AND WESTERN STAR	180 bar	LEFT	18.0ml/r	500-3600r/min	16.0L/min	11/16-12UN	3/4-16UNF
TKL221615R	221615R	CAT S60 ISX ISM	145 bar	RIGHT	22.0ml/r	500-3600r/min	16.0L/min	11/16-12UN	3/4-16UNF
