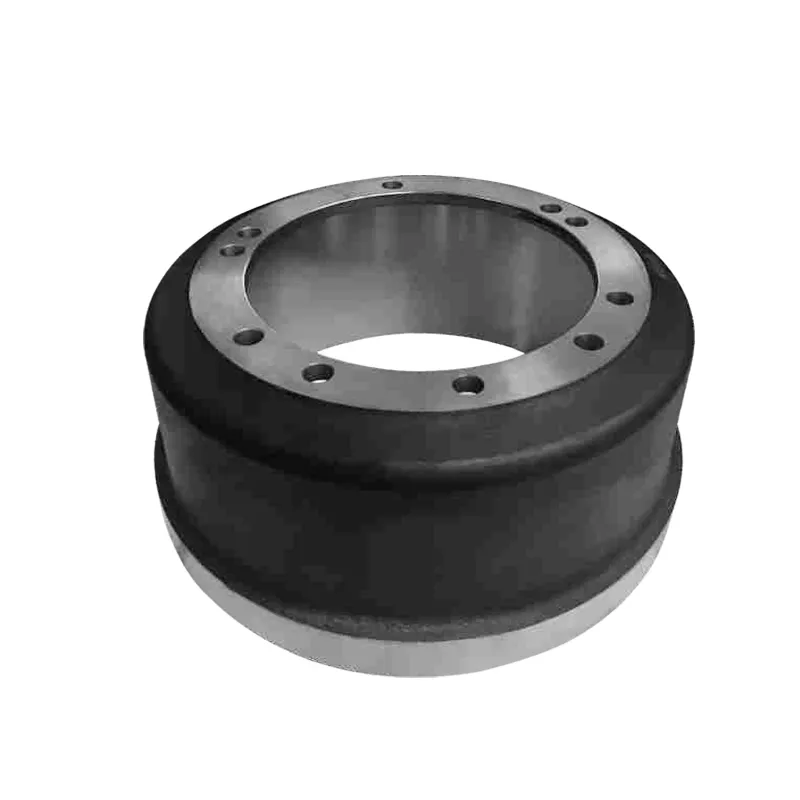

Brake Drum

TKL NO.
TKL66875B, TKL66895B, TKL65541B, TKL66853F, TKL66864B, TKL65152B, TKL65710B, TKL61527B, TKL65151B, TKL65545B, TKL66854B, TKL66864F, TKL66864B, TKL66250B, TKL68730F, TKL68981B, TKL67518B, TKL1075310, TKL1414153, TKL1414435, TKL1599009, TKL3054210001, TKL3054210401, TKL3054230401, TKL3014230801, TKL6244210201, TKL6584210001

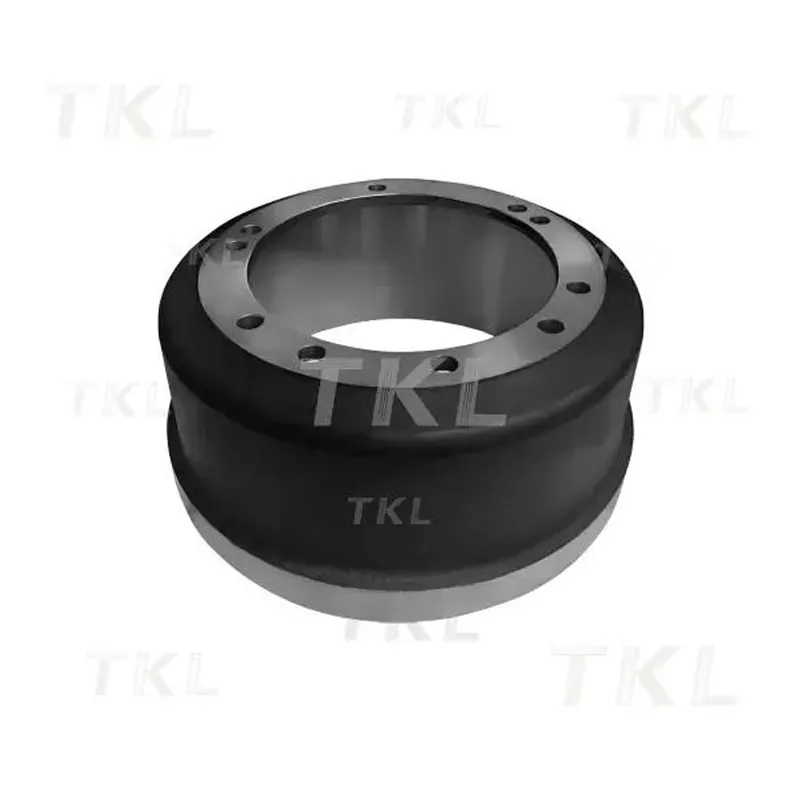

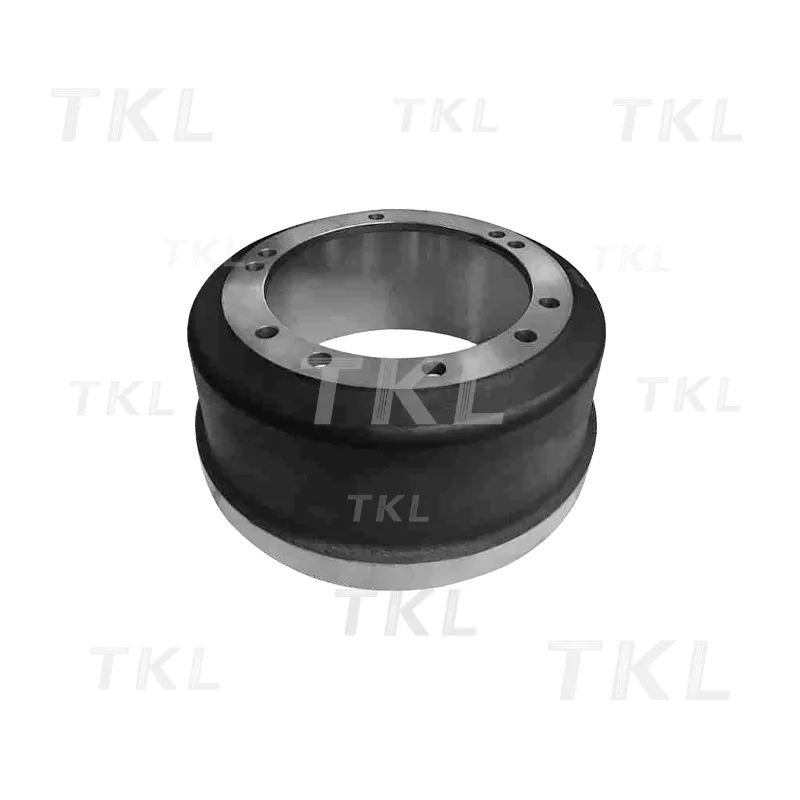

Specification of TKL66875B Brake Drum

TKL NO.	DESCRIPTION
TKL NO.	Brake Size &Side	Overall Depth	Bolt Circle Dia	Pilot Dia	Bolt Holes &Size	Brake Surface Width	Replace Gunite	Replace WEBB
TKL66875B	16.5"x7"-Rear	10.59"	10.82"	9.00"	8-1.00"	7.48°	3141B	66875B
TKL66895B	16.5"x7"-Rear	10.59"	11.25"	9.00"	10-0.81"	7.48°	3141X	66895B
TKL65541B	15"x4-Front	8.76	11.25"	9.00"	10-1.28"	4.57°	3158X	65541B
TKL66853F	16.5"x7"-Drive	10.59"	11.25"	8.53"	10-0.81"	7.70°	3166X	66853F 66893F
TKL66864B	16.5"x7"-Rear	10.56"	11.25"	8.78"	10-1.00"	7.60°	3600AX	66864B 66884B
TKL65152B	16.5"x6"-Front	9.74"	11.25"	8.78"	10-1.25"	6.52°	3687X	65152B
TKL65710B	16.5"x5"-Front	9.04"	11.25"	8.78"	10-1.25"	5.38°	3710X	65710B
TKL61527B	15"x4"-Front	8.79"	11.25"	8.78"	10-1.25"	4.78°	3721AX	61527B 77528B
TKL65151B	16.5"x5"-Front	9.37"	11.25"	8.78"	10-1.25"	5.31°	3758X	65151B
TKL65545B	15"x4"-Front	918"	11.25"	8.66° 8.78°	10-1.25"	4.66°	3800AX	65545B 65548B
TKL66854B	16.5"x8.625"-Rear	11.39"	11.25"	8.78"	10-1.00"	9.00°	3807X	66854B 66855B
TKL66864F	16.5"x7"	10.52"	11.25"	8.78"	10-1.00"	7.54°	3680	66864F
TKL66864B	16.5"x7"	10.56"	11.25"	8.78"	10-1.00"	7.60°		56864B
TKL66250B	16.5"x7"	10.59"	13.19"	11.25"	10-1.00"	7.38°		66250B
TKL68730F	16.5"x7"	8.75"	11.25"	9.50"	10-0.81"	7.44°		68730F
TKL68981B	16.5"x7"	8.44"	12.75"	11.25"	5-0.78"/6-0.78"	7.37°		68981B
TKL67518B	16.5"x7"	8.38"	11.00"	9.44"	5-0.78"/6-0.66"	7.38°		67518B
TKL1075310	410mm	306mm	335mm	282mm	10-28mm	230mm
TKL1414153	413mm	275mm	335mm	295mm	10-23.5mm	213mm
TKL1414435	413mm	320mm	335mm	295mm	10-23.5mm	266mm
TKL1599009	410mm	261mm	335mm	282mm	10-28mm	195mm
TKL3054210001	410mm	229mm	335mm	298mm	10-23mm	173mm
TKL3054210401	410mm	212mm	335mm	298mm	10-23mm	168mm
TKL3054230401	410mm	306mm	335mm	298mm	10-23mm	238mm
TKL3014230801	410mm	306mm	335mm	298mm	10-23mm	238mm
TKL6244210201	410mm	238mm	335mm	298mm	10-23mm	191mm
TKL6584210001	410mm	238mm	335mm	298mm	10-23mm	191mm
